This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains FA A Unit Diesel LIONEL TRAINS ROCK ISLAND FA DIESEL A UNIT No. 231

black horizontal bar

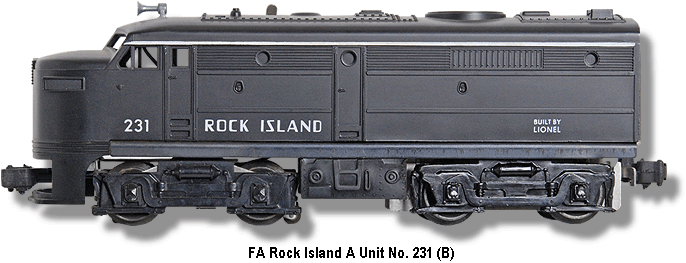

Rock Island FA A Unit No. 231 Variation B
spacer
No. 231 Box End
spacer

Lionel Trains FA A Unit DieselThe Lionel Rock Island FA A Unit No. 231 was produced from 1961 until 1963 on a sheet metal frame that had solid non-operating couplers. This diesel has a two-position directional unit whose control lever is adjustable from the top, and two axle Magnetraction, an interior light, but no horn. Open pilot body mold with a large lower ledge.
spacer
The body of this Alco unit was painted BLACK with WHITE heat-stamped lettering. The RED stripe on Variation A is sometimes found in faded condition caused by exposure to direct sun light. This color change is visible in the side view illustrated below when compared to the BRIGHT RED of the front view.

spacer
There are two variations:

Variation A: Has a painted RED stripe across the middle with a smaller WHITE stripe at the roof line and heat-stamped lettering.
spacer
Has a Type IIA motor. Made in 1961-1962.
spacer

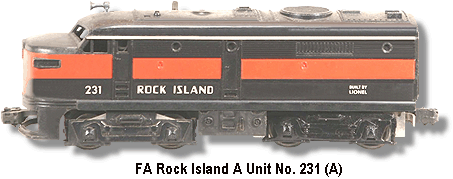

Rock Island FA A Unit No. 231 Variation A

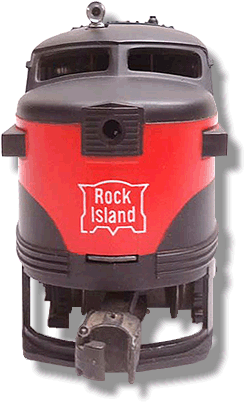

Front View of Variation A

Variation B: Has a BLACK painted body, but no RED stripe. The painted WHITE roof stripe remains on this variation, as does the heat-stamped lettering. Uses a Type IIC motor. 1963 Production.
spacer
This diesel engine was issued in O27 sets that included O27 Gauge track, but it will run equally well on O Gauge track.
