This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains GG-1 Electrics LIONEL TRAINS PENNSYLVANIA GG-1 ELECTRIC No. 2340

black horizontal bar

Lionel Trains Pennsylvania GG-1 Electric No. 2340 Variation A
spacer

Lionel Trains GG-1 ElectricsThe Lionel Pennsylvania GG-1 No. 2340 headed up the Congressional Set in 1955 only. This engine has five rubber-stamped stripes and heat-stamped lettering, and it is very hard today to find examples that do not have faded stripes. Has RED Keystone decals, and this electric engine was lighted at both ends that have operating coil couplers. Equipped with Magnetraction, there is a three position directional unit that controlled dual vertical worm drive motors, and it was equipped with a horn. The wiring can be changed so that the metal twin pantographs actually power this engine. There are two variations:

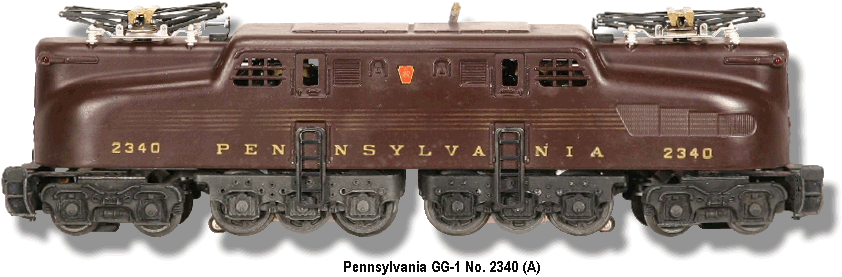

Variation A: TUSCAN body that was illustrated in the 1955 catalog as No. 2340-1.
spacer

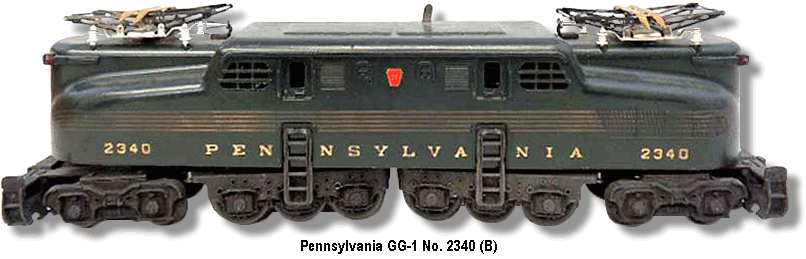

Variation B: BRUNSWICK GREEN body that was the standard color used for this engine by the Pennsylvania Railroad and was cataloged as No. 2340-25.
spacer
All of the Lionel GG-1’s are designed to work on the larger radius of O gauge track.
