This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

The General Electric EP-5 LIONEL TRAINS THE MILWAUKEE ROAD EP-5 ELECTRIC No. 2351

black horizontal bar

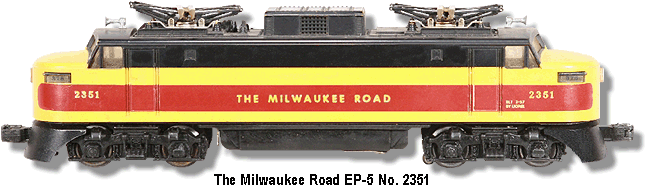

Lionel Trains The Milwaukee Road EP-5 Electric No. 2351
spacer
Front View of the No. 2351
spacer

The General Electric EP-5The Milwaukee Road EP-5 Electric No. 2351 was available in 1957 and 1958. This engine featured twin operating pantographs and magnetic operating couplers, lighted at both ends, a three position directional unit that controls a single vertical worm drive motor, operating horn, and Magnetraction. The overhead pantographs could be wired to power this engine.
spacer
Produced on a YELLOW body, it would be painted DARK RED and BLACK with YELLOW heat-stamped lettering. Reproduction shells use a silk screen process. A growing problem in the aging of these units is the stress placed on the ends that mount to the chassis. This, and tension induced by the insertion of the oversized headlight lens has caused cracks on the ends. There are no variations.
spacer
This engine will run equally well on O27 Gauge track as well as the larger radius of O Gauge track.

No. 2351 Box End
