This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains F-3 AB Unit Diesels LIONEL TRAINS WABASH F-3 DIESEL No. 2367

black horizontal bar

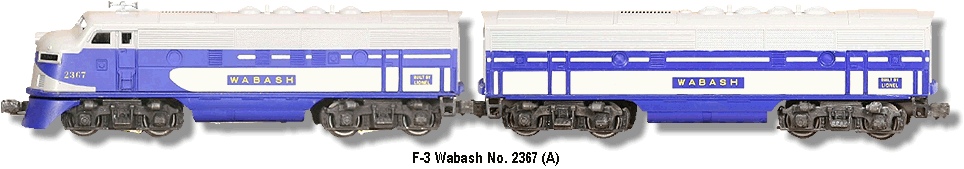

Lionel Trains Wabash AB Units No. 2367 Variation A
spacer

Lionel Trains F-3 AB Unit DieselsThe Lionel Wabash F-3 No. 2367 has an A Unit that was painted BLUE with a GRAY painted upper portion and WHITE lower portion. The B Unit was an unpainted BLUE plastic shell and painted GRAY, and WHITE. Both units have YELLOW heat-stamped lettering in most instances. Reproduction shells have silk-screened application of these colors. The chassis is BLUE as is the front pilot skirt on the A Unit, and the truck side frames are BLACK.
spacer
This engine has louvered roof vents, filled in portholes, cast in side ladders, magnetic disc coupler on the front end of the A Unit. All other couplers are solid and non-operating. This diesel was equipped with a horn that was operated by a D Cell battery, and it has a three position directional unit whose control lever was adjustable from underneath the chassis. Dual vertical worm drive motors powered each axle that utilized Magnetraction. Produced in 1955.
spacer
There are two variations:
spacer
Variation A: "BUILT BY LIONEL" is heat stamped on opposite ends of the B Unit sides.

No. 2367P Power A Unit Box End

Variation B: Involves the YELLOW lettering on the B Unit. Unlike Variation A (illustrated) the "BUILT BY LIONEL" is rubber stamped on the same end on both sides. A rare variation.
spacer
All of the Lionel F-3’s are designed to work on the larger radius of O Gauge track. When used with O27 Gauge track this diesel will scrape the switch machine housing on the early version of the No. 1122 O27 Switches when passing through the curved turnout. Evidence of scrapes on the fuel tank of these diesels is a sure indication of operation on O27 track.

No. 2367 Set Box Side
