This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

The Lionel Trains No. 2560 Crane Car LIONEL TRAINS LIONEL LINES CRANE CAR No. 2560

black horizontal bar

The Lionel Trains Crane Car No 2560 B Variation
spacer

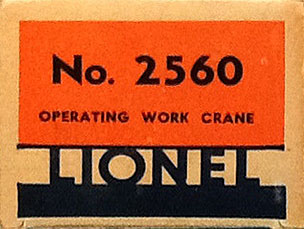

No. 2560 Early Classic Box End
spacer

The Lionel Trains No. 2560 Crane CarThe Lionel Lines Crane Car No. 2560 is the post-war version of the pre-war No. 2660 that was first issued in 1946 and was available for one additional year. The major change was the conversion to post war trucks. The original cord that held the suspended hook was WHITE, but today it is found mainly with a BLACK cord.

This crane car was produced on a BLACK sheet metal frame that have steps at the four corners. The cab is painted a glossy YELLOW and the roof is painted gloss RED. On the rear of the cab was rubber-stamped "LIONEL / LINES" and "2560" with a circled "L" above the boom elevation wheel.
spacer
This car came with staple-end trucks equipped with electronic coil couplers. There are three variations of this car:
spacer
Variation A: has a BLACK crane boom that is inscribed "LIONEL CRANE" on the sides. A pin at the end of the boom holds the pulley in place. No stake marks on the underside of the knuckle couplers. Produced in 1946.
spacer
Variation B: had a BROWN crane boom that is inscribed "LIONEL CRANE" on the sides. A nickel rivet replaces the pulley at the end of the boom. No stake marks on the underside of the knuckle couplers. Produced in 1946.
spacer
Variation C: has a GREEN crane boom that is inscribed "LIONEL CRANE" on the sides. A nickel rivet serves as a pulley at the end of the boom. With four stake marks on the underside of the knuckle couplers. Produced in 1947.
spacer

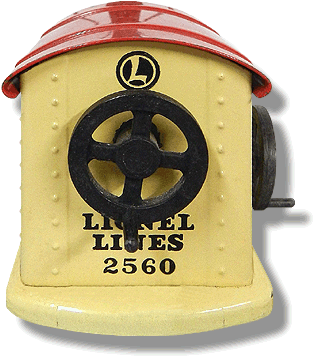

Rear View of No. 2560
