This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains Highway Crossing Gate No. 262 LIONEL TRAINS HIGHWAY CROSSING GATE No. 262

black horizontal bar

Lionel Trains Highway Crossing Gate No. 262
spacer

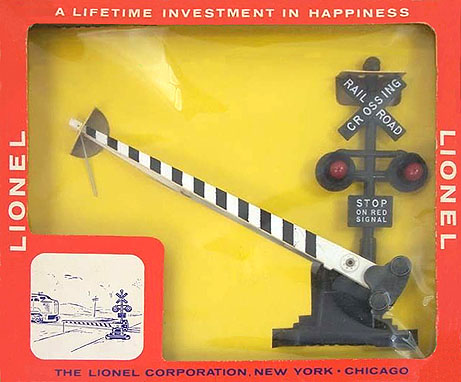

No. 262 In Display Box Variation A
spacer

Lionel Trains Highway Crossing Gate No. 262The Lionel Highway Crossing Gate No. 262 when released in 1962 used the modified base of the No. 252 Crossing Gate to which was added a cross buck with two RED warning lights. Essentially the No. 262 replaced the No. 252 which, although it was still cataloged, was most likely not produced after 1961.
spacer
Missing from this highway crossing gate are the clear plastic light transfer bar and warning lights that were used on the No. 252, although the base still has the opening for the light — there is no light.
spacer
This highway crossing gate was covered in the last two issues of instruction sheet No. 145-56 for the No. 145C Contactor dated 2/62 and 4/65 which was used to trigger the operation of the gate. However, for some unknown reason these instructions were never included with the 262’s. Also unknown is why Lionel would issue special instructions for this accessory instead of using the No. 145C sheet.

As one of the austerity measures that were instituted at Lionel in the early 1960’s, Lionel would reduce the size of the instruction sheet to 5-1/2" x 8-1/2" which was then folded to create four pages. Two of these instruction sheets numbered 262-11 were issued. The first is dated 8-62 and the second 3/65. They state incorrectly that the lights automatically flash when activated and there is no mention of the correct replacement correct bulbs No. L19(R) that were required by this accessory. In fact, the No. 145C instruction sheet incorrectly lists the number L53(R) bayonet base bulb instead of the correct pin type L19(R) bulbs.

No. 145C Contact

There are two known types of packaging that were used for the Highway Crossing Gate. The first was a display box (pictured above right and below) and a blister pack that was designed to be hung from a dealer’s rack. This accounts for two of the three variations:
spacer
Variation A: Has BLACK slash marks on the gate and came in a display box.
spacer
Variation B: Has BLACK slash marks on the gate and came in a blister pack. Because this packaging had to be compromised to use the gate it is extremely hard to find today intact.
spacer

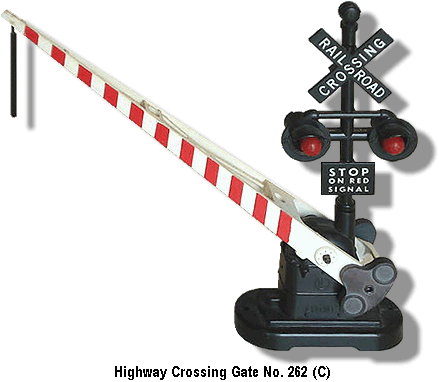

Variation C: Has RED slash marks on the gate. This may be an early MPC production, but the examples that have been found show the original Lionel post war printing on the bottom of the base. None of these have been found in MPC packaging.
spacer
Produced from 1962 to 1966 and also in 1968 and 1969, the last year of the Post War Era.
spacer
Dimensions: Base is 3-1/2" x 1-5/8", length 9-7/8", height 9-7/8"
spacer

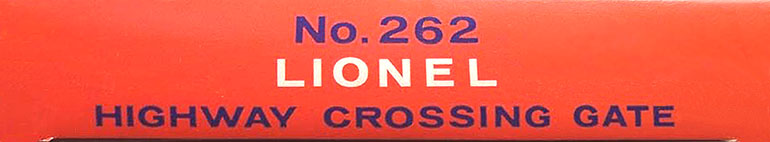

Variation A Box End
