This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Rotary Beacon No. 494 LIONEL TRAINS ROTARY BEACON No. 494

black horizontal bar

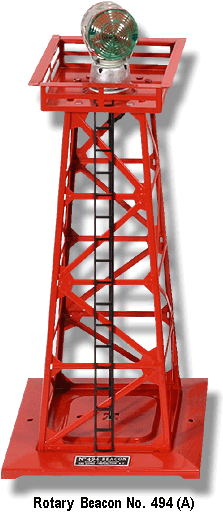

Rotary Beacon No. 494 Variation A

Rotary Beacon No. 494The Rotary Beacon No. 494 replaced the No. 394 Rotary Beacon in 1954. The main difference between the two is that the No. 494 used a vibrator coil, similar to what was used on the No. 3520 Searchlight Car, at the top instead of the heat of the lamp that was used previously to rotate the beacon. This made for a more reliable operation that occurred instantly when power was supplied to the beacon. Available from 1954 until 1966, there are two wire clips on the bottom to connect this accessory to a power source. The best source is a variable voltage accessory circuit so that the rate of rotation of the beacon can be adjusted.

No. 494 Middle Classic Box Top

There are three variations:
spacer
Variation A: RED painted steel base, tower, and top platform. Metal name plate is blackened with SILVER lettering and is attached to the base with tabs.
spacer
Variation B: Unpainted aluminum base, tower, and top platform.
spacer
Variation C: SILVER painted steel base, tower, and top platform. Metal name plate is blackened with SILVER lettering and is attached to the base with tabs. Weighs considerably more than Variation B.
spacer
Dimensions: 11-3/4 inches high, with a 5 inches square base.
spacer

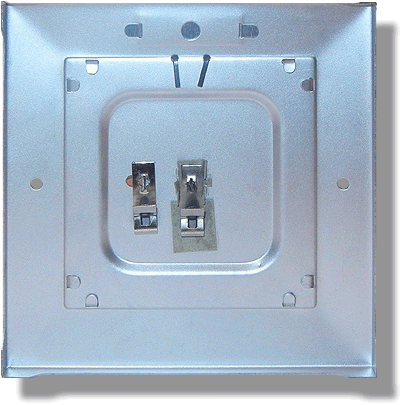

Bottom View of No. 494
spacer
No. 494 Display Box Top
spacer
