This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

The Lionel SP Type Cabooses LIONEL TRAINS SP TYPE BOSTON & MAINE CABOOSE No. 6017-100

black horizontal bar

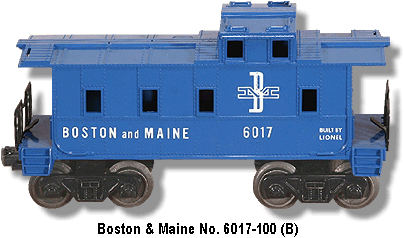

The Boston and Maine SP Type Caboose No. 6017-100 Variation B
spacer

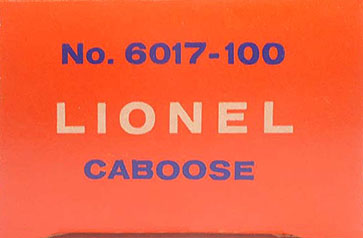

No. 6017-100 Orange Picture Box End
spacer

The Lionel SP Type CaboosesThe Boston and Maine Caboose No. 6017-100 production spanned eight years and encompassed three different body types: Dies 1A, 3C and 4. The main difference was that this caboose came both with and without ladder slots. The BLUE painted body is held to the chassis with end tabs.
spacer
Produced in 1959, 1962, and in 1965 and 1966, the "B & M" stylized logo and lettering is heat-stamped in WHITE on the sides. The blackened chassis is sheet metal that came equipped with AAR trucks that usually had one operating disc coupler. Cataloged as No. 6017-100, only the number 6017 appears on this caboose.
spacer
There are four variations:
spacer
Variation A: Was an early production example (Die 1A) that was a VIOLET BLUE color and is rare.
spacer
Variation B: Is MEDIUM BLUE with a high gloss finish.
spacer
Variation C: Is MEDIUM BLUE with a semi-gloss finish.
spacer
Variation D: Is a LIGHT BLUE color with a semi-gloss finish.
spacer
