Lionel Electric Trains Identification Guide Sub-Title Bottom of Page

This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains NW-2 Diesel Switcher LIONEL TRAINS SANTA FE NW-2 DIESEL SWITCHER No. 616

black horizontal bar

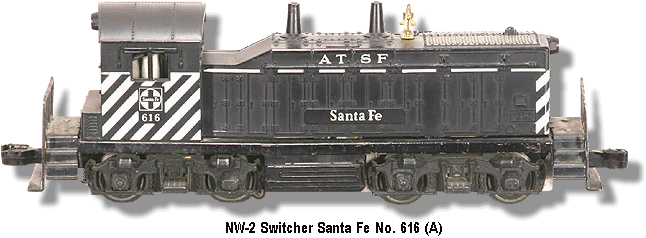

Lionel Trains Santa Fe NW-2 Diesel Switcher No. 616 Variation A
spacer
No. 616 Picture Box End
spacer

Lionel Trains NW-2 Diesel SwitcherThe Lionel Santa Fe NW-2 Switcher No. 616 used a BLACK body with BLACK and WHITE safety stripes on sides and ends, heat-stamped lettering "ATSF" and railroad herald. This engine had a horn unit that operated off of a C sized battery that was held in place at the bottom of the sheet metal chassis. The decorative horn and bell have been removed. On some of the shells used for this switcher the holes for these items have been plugged and on others they are still there. Note: on the picture above a bell has been added, but this is not how this switcher was manufactured.
spacer
Some examples of this engine have operating disc couplers at both ends. It came with a light on the front of the unit, Type IID motor, two axle Magnetraction, and was equipped with a three position directional unit whose control lever was adjustable from the bottom of the body. Came with Instruction Sheet No. 616-9 dated 6-61. There are three variations:
spacer
Variation A: Body wth open directional unit and bell slots. (1961)
spacer
Variation B: Body has an open bell slot but the directional unit slot has been filled in (1962).
spacer
Variation C: Body has both the directional unit and bell slots filled in. (1962).
spacer
Lionel issued this diesel for use on O27 Gauge track, but it will operate equally well on the larger radius curves of O Gauge track.
