This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains Code Transmitter Beacon Set No. 299 LIONEL TRAINS CODE TRANSMITTER BEACON SET No. 299

black horizontal bar

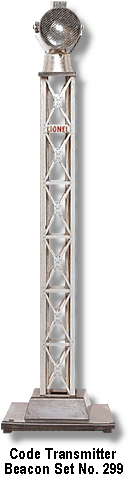

Lionel Trains Code Transmitter Beacon Set No. 299

Lionel Trains Code Transmitter Beacon Set No. 506The Code Transmitter Beacon Set No. 299 was available from 1961 until 1963, and applied one of the Lionel Science kits to their train accessories. The key could send Morse Code to the beacon at the top of the tower. On top of the key was a SILVER decal that printed out the Morse code.
spacer
The tower has a BLACK plastic base and top with a GRAY searchlight. The original lamp, No. L402, would flash on its own if connected directly to the power source without the use of the key. There are no known variations.
spacer
The best way to wire this beacon tower is to an accessory circuit with variable voltage so that the intensity of the light can be adjusted.
spacer
Dimensions: 11-3/4 inches high, Base: 3-1/4 inches square.

spacer

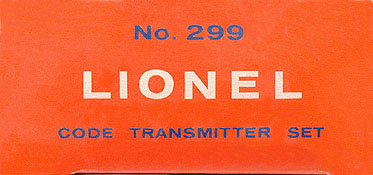

spacerNo. 299 Box End
spacer

No. 299 Sending Key

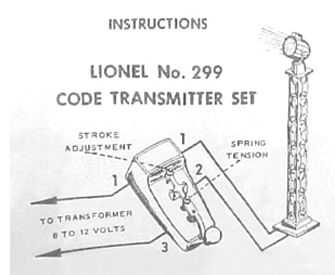

No. 299 Instruction Sheet
