This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains Operating Log Car Unloading No. 3361LIONEL TRAINS OPERATING LOG UNLOADING CAR No. 3361

black horizontal bar

Lionel Trains Operating Log Unloading Car No. 3361 Variation A
spacer
Lionel Trains Operating Log Unloading Car No. 3361 Variation D
spacer

Lionel Trains Operating Log Unloading Car No. 3361The Operating Log Unloading Car No. 3361 was produced on a GRAY plastic body, the "LIONEL LINES" lettering and car reporting data was rubber-stamped on. This car was produced from 1955 until 1959, and came with five stained logs, bar-end Type 7 trucks with magnetic couplers, and a No. 160 bin (if sold separately). Later editions would have tabbed couplers.
spacer
Unlike the earlier issued No. 3451 and No. 3461 this car did not unload all of the logs at one time, but by repeatedly pushing the unload button on the No. UCS or the No. 6019 remote track controller would incrementally raise the center log carrier until the logs were unloaded and the carrier would then return to its normal position.
spacer
This car was available in two different boxes. One was labeled No. 3361 and the other No. 3361X. The "X" suffix denotes that this car was included in a set and did not contain the No. 160 Variation E line side bin. This version of the bin was eight inches long, was made out of plastic, and replaced the earlier seven inch bakelite bin in 1955 to accomodate the larger operating cars like the No. 3361.

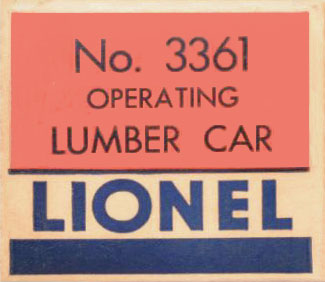

No. 3361 Late Classic Box End

At least one instruction sheet No. 3361-29 was produced with DARK BLUE ink in WHITE paper and dated 6-58. The FRONT page of this sheet is shown below as is the BACK page.
spacer
There are four variations:
spacer
Variation A: "LIONEL LINES" in thick 7/32" rubber-stamped serif letters and "336155" on the right side. WHITE plastic is used for the drive gear in the unloading mechanism.
spacer
Variation B: Similar to Variation A except the drive gear is BLACK plastic.
spacer
Variation C: "336155" is rubber-stamped in a lighter serif letters and on the left side of the "LIONEL LINES" inscription on the side. This variation usually has a MEDIUM ORANGE plastic drive gear that is used in the unloading mechanism and the car. The chassis is molded in a DARKER GRAY color.
spacer
Variation D: "LIONEL LINES" in thin 1/8" rubber-stamped sans-serif letters and "336155" on the right side. MEDIUM ORANGE plastic is usually used for the drive gear in the unloading mechanism and the car chassis is molded in a DARKER GRAY color.
spacer

No. 3361X Late Classic Set Box End

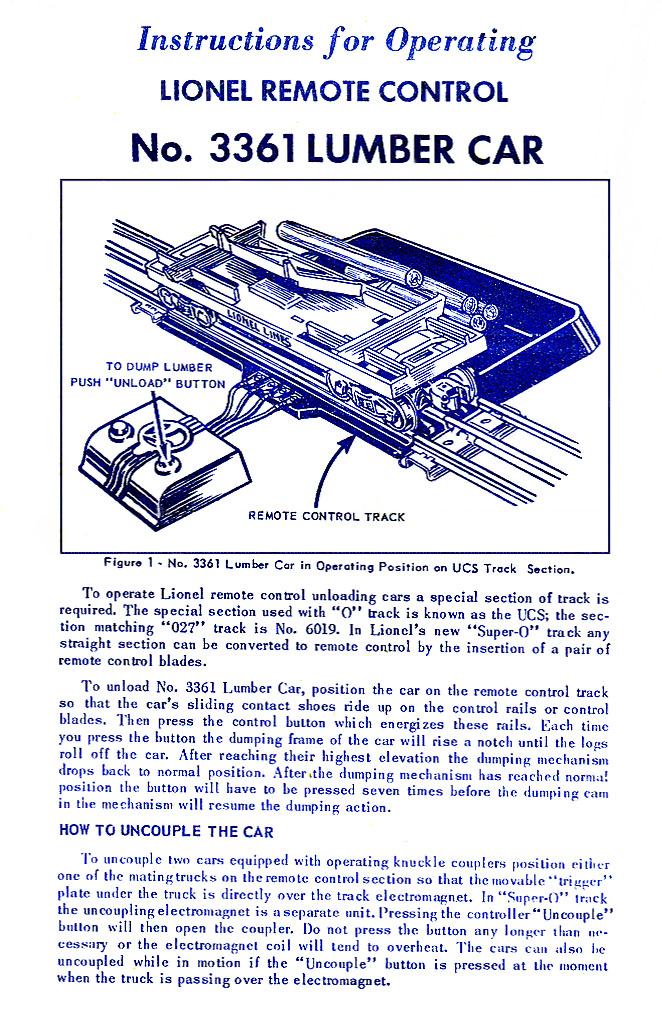

No. 3361-29 Instructions Front Page
spacer

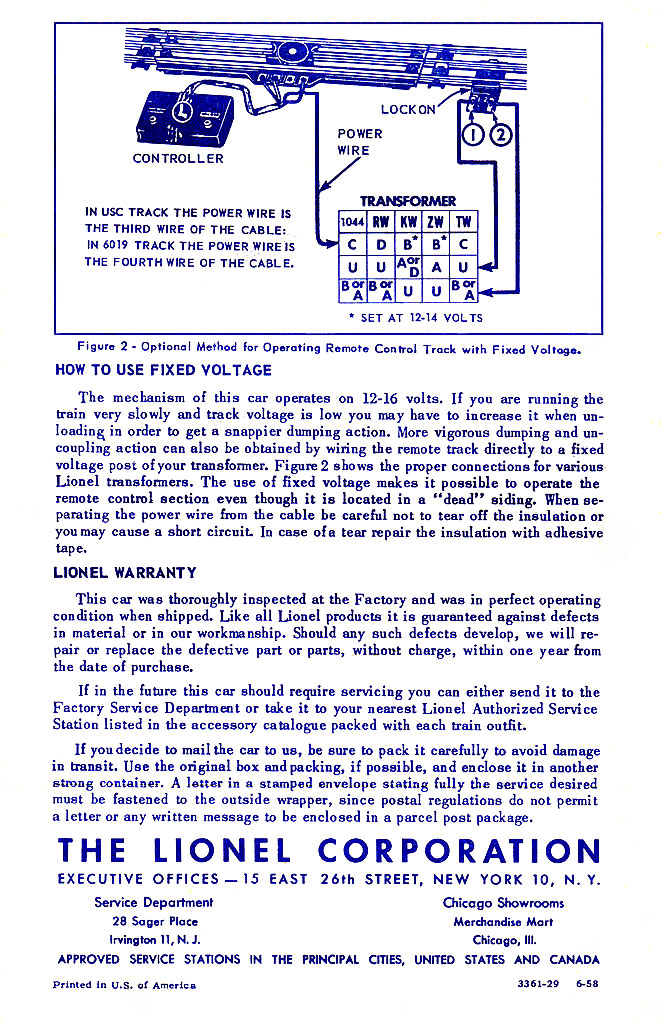

No. 3361-29 Instructions Back Page
