This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel No. 50 Gang Car UnitLIONEL GANG CAR UNIT No. 50 The Lionel No. 50 Gang Car in Action!

black horizontal bar

Gang Car No. 50 Variation C
spacer
Note the position of the horn on the right side
spacer

Automatic Directional Reversing UnitsThe Gang Car No. 50 was first produced in 1954 and was a big hit with Lionel’s customers. The unit would run in only one direction depending on where the sliding directional plate on the unit was located. When it came to the end of the track, and struck a bumper, the plate would move, and the unit would reverse direction until it hit another bumper at the other end of the track. The crew man closest to the rear of the unit would also move when it reversed direction. The Gang Car would do this perpetually until the power was turned off.
spacer
Most typically found with an ORANGE plastic body and top brush plate with DARK BLUE heat stamped lettering, ornamental horn and three rubberized crew members seated on top.

No. 50 Box End

Because this unit was in production for eleven years many variations occurred. The major variations are:
spacer
Variation A: Has a centered two-piece horn, fixed position crew men are OLIVE and rotating crew man is DARK BLUE. This is the earliest production in 1954 that has GRAY bumpers.
spacer
Variation B: Identical to Variation A but has the more commonly found BLUE bumpers.
spacer
Variation C: Has the centered two-piece horn, however the fixed crew men are DARK BLUE and the rotating crew man is OLIVE.

Note the ornamental horn centered on the brush plate

Variation D: Has a one-piece horn that is positioned to the right side of the brush plate, BLUE bumpers, and fixed crew men that are DARK BLUE and the rotating crew man is OLIVE. This is the most common variation.
spacer
Variation E: Identical to Variation D except with inverted "L" shaped bumper plate.

Note the single center rail pick-up

Many different instruction sheets were issued over the eleven year span of production of the gang car. Below we’ve shown one from 1960: page 1, page 2, and page 3.
spacer
Note: The number "50" does not always appear printed on the side of these units. There was only one electrical center rail pick-up on this motorized unit so it would not negotiate switches or crossovers at a slow speed.
spacer

No. 50-94 Instruction Sheet Page 1
spacer

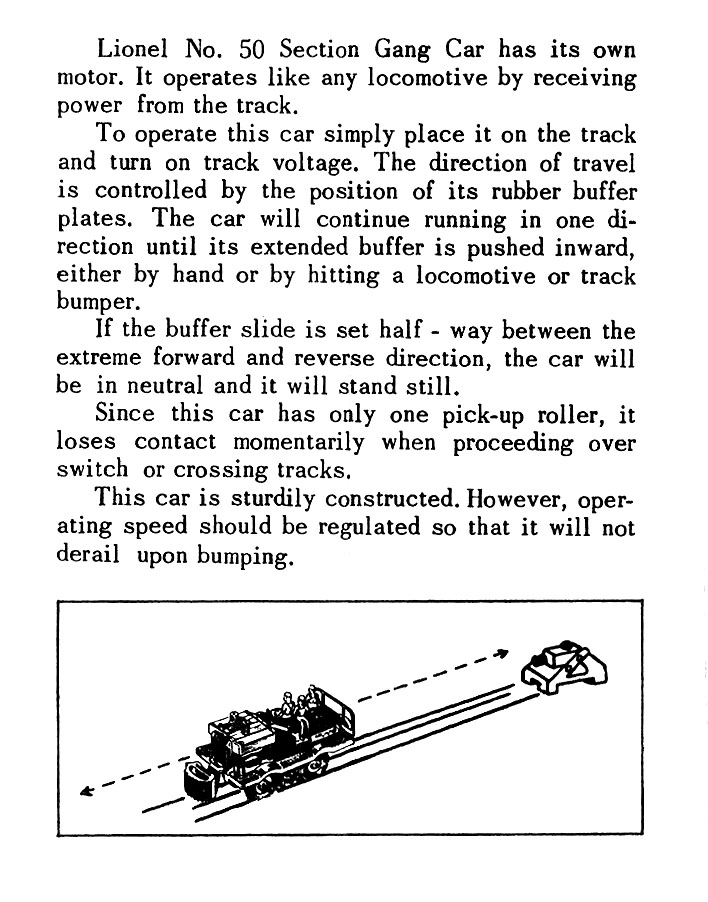

No. 50-94 Instruction Sheet Page 2
spacer
No. 50-94 Instruction Sheet Page 3
