This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains NW-2 Diesel Switcher LIONEL TRAINS ERIE NW-2 DIESEL SWITCHER No. 610

black horizontal bar

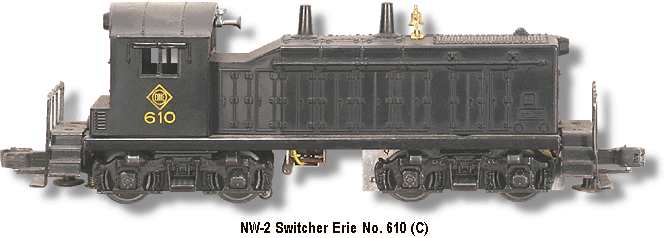

Erie NW-2 Diesel Switcher No. 610 Variation C
spacer
No. 610 Middle Classic Box End
spacer

Lionel Trains NW-2 Diesel SwitcherThe Lionel Erie NW-2 Switcher No. 610 used a BLACK body with YELLOW heat-stamped lettering and railroad herald. There is no skirt on the sheet metal frame. Most copies are found with one-axle Magnetraction.
spacer
This engine has operating disc couplers at both ends, and some early production units would have a light. It was equipped with a three position directional unit whose control lever was adjustable from the bottom of the sheet metal chassis. Produced only in 1955, it is amazing that there are five variations:
spacer
Variation A: BLACK painted chassis, with light.
spacer
Variation B: YELLOW painted chassis. No light.
spacer
Variation C: Chemically blackened sheet metal chassis. This is the most common version.
spacer
Variation D: Identical to Variation A, but this version has two axle Magnetraction and no light. Probably the first production.
spacer
Variation E: This variation has a service-station replaced body (Part No. 600-3) that has a nameplate on the sides similar to the Jersey Central No. 621.
spacer
Lionel issued this diesel for use on O27 Gauge track, but it will operate equally well on the larger radius curves of O Gauge track.
spacer

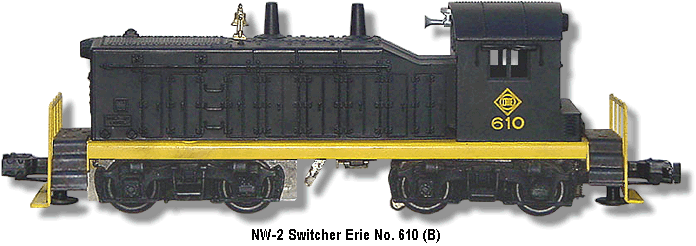

Erie NW-2 Diesel Switcher No. 610 Variation B
Courtesy of J. Puccio Collectionspacer
