This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains FA AA Unit Diesels LIONEL TRAINS SANTA FE FA DIESEL No. 215

black horizontal bar

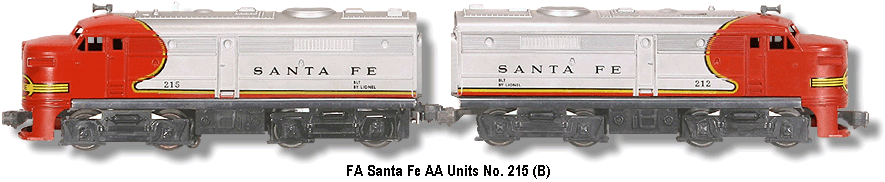

Lionel Trains Santa Fe FA Diesel double A units No. 215 B Variation
spacer

Lionel Trains FA AA Unit DieselsThe Lionel Santa Fe FA No. 215 was issued uncataloged in 1965 and would head up several sets available through Sears and J.C. Penny Co. It was also available from J.C. Penny as part of set No. X924-8279A in 1966. These sets consisted in various combinations of AA and AB units. We’ve pictured the box top and side of one of these sets that were issued in 1965 below. This set, No. 19335, consisted of:
spacer
BB No. 215 Santa Fe Powered A Unit as described here.
spacer
BB No. 212T Santa Fe Dummy A Unit (unweighted).
spacer
BB No. 6142 BLACK Gondola Car Variation A with WHITE unmarked cannisters.
spacer
BB No. 3362 GREEN Log Dump Car Variation B with rubber-stamped lettering.
spacer
BB No. 6473 YELLOW Horse Transport Car with RED lettering.
spacer
BB No. 6059 RED MStL Caboose.
spacer
BB Included track and a No. 1010 35 Watt Transformer.
spacer
Painted in the Santa Fe war bonnet paint scheme, it was equipped with one traction tire on the power truck. A two position directional unit whose control lever was adjustable from the top of the body controled the direction of this diesel. A single vertical worm drive Type IIIB motor powers two axles. The lettering was heat-stamped on these units and the sheet metal chassis have solid non-operating couplers. There are three variations:
spacer
Variation A: Came with a powered A Unit that shows a built date "BLT 8-57 / BY LIONEL" and a No. 212T dummy A unit.
spacer
Note the lack of date 8-57Variation B: This No. 215 powered unit shows a built date "BLT / BY LIONEL" came with a No. 212T dummy A unit.
spacer
Variation C: Came with a No. 218C dummy B Unit that has been found with both types of built dates.

All of the Lionel Alco FA units are designed to work on the tighter radius of O27 Gauge track, but they will run equally well on O Gauge track.
spacer

Set No. 19335 Box Top
spacer
Set No. 19335 Box Side
