This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains Operating Merchandise Box Car No. 3454LIONEL TRAINS AUTOMATIC MERCHANDISE BOX CAR No. 3454

black horizontal bar

Automatic Merchandise Box Car No. 3454 C Variation
spacer
No. 3454 Operating Mechanism
spacer

Lionel Trains Operating Merchandise Box Car No. 3454The Automatic Merchandise Box Car No. 3454 was available in 1946 and 1947. Lionel would use this car to perfect the mechanism that would be used in the No. 3462 that premiered the following year. This mechanism was mounted on a sheet metal chassis that has four steps at each of the corners.
spacer
This SILVER painted box car is most often found with DARK BLUE heat-stamped lettering that included a Pennsylvania Railroad logo above the car data on the right side. Today, a premium is paid for cars that still retain a shiny SILVER finish. Used Type 3 staple-end trucks that have electronic coil couplers.

No. 3814-53 Baby Ruth Crates

The merchandise car came with six No. 3814-53 "Baby Ruth" plastic merchandise crates that were manually loaded through a hatch in the roof and were unloaded electronically with the use of a UCS or No. 6019 track section into a waiting No. 160 Unloading Bin at track side. The plastic crates are usually REDDISH BROWN in color, but have also been found in BLACK and RED colors. These crates have been reproduced but the reproductions are BROWN in color and do not have the "Baby Ruth" imprint.
spacer
The crates came in a No. 3454-51 Envelope along with a No. 3454-47 Instruction Sheet. A picture of this envelope is shown below.
spacer
There are three variations:
spacer
Variation A: Used Type 3a trucks and the lettering is DARK BLUE almost BLACK in color. The roof hinge pin was not visible on the end of the car.
spacer

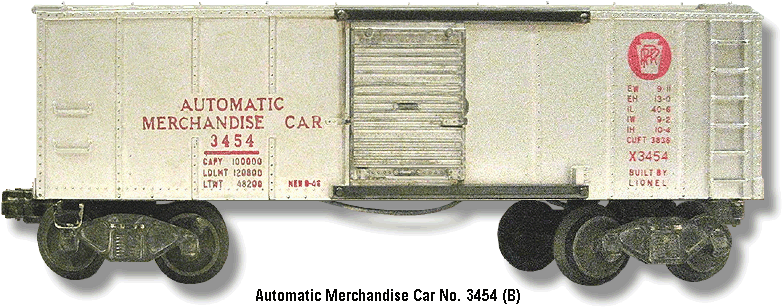

Variation B: Has RED heat-stamped lettering. This is most likely an early production run.
spacer

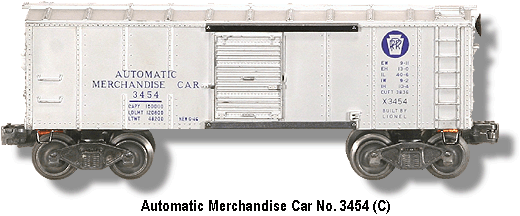

Variation C: This is the same as Variation A, except that the lettering is DARK BLUE and the roof hinge pin shows through on the side of the car. 1947 Production.
spacer

Automatic Merchandise Box Car No. 3454 B Variation
spacer
No. 3454-51 Parts Envelope
spacer
No. 3454 Early Classic Box End
spacer
