This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains NW-2 Diesel Switcher LIONEL TRAINS ERIE NW-2 DIESEL SWITCHER No. 610

black horizontal bar

Lionel Trains Erie NW-2 Diesel Switcher No. 610 Variation C
spacer

Lionel Trains NW-2 Diesel SwitcherThe Lionel Erie No. 610 Switcher used a BLACK body with YELLOW heat-stamped lettering and railroad herald. This engine had operating disc couplers at both ends, and some early production units would have a light. It was equipped with a three position directional unit whose control lever was adjustable from the bottom of the sheet metal chassis, and either one or two axle Magnetraction. Produced only in 1955, it is amazing that there are five variations:
spacer
Variation A: BLACK chassis, with light.
spacer

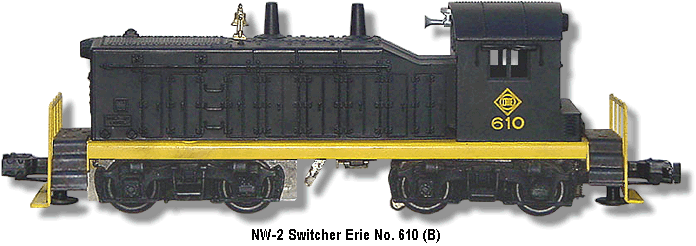

Variation B: YELLOW chassis.
spacer

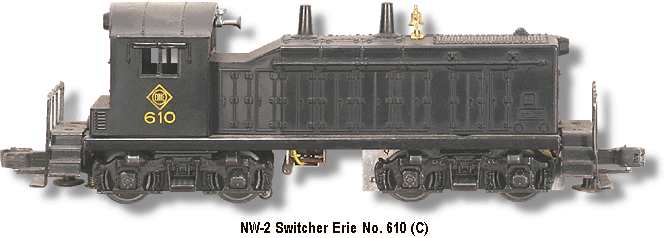

Variation C: Identical to Variation A, but this version doesn’t have a light.
spacer
Variation D: Identical to Variation A, but this version has two axle Magnetraction and no light. Probably the first production.
spacer
Variation E: This variation has a service-station replaced body (Part No. 600-3) that has a nameplate on the sides similar to the Jersey Central No. 621.
spacer
Lionel issued this diesel for use on O27 gauge track, but it will operate equally well on the larger radius curves of O gauge track.
