This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains Searchlight Car No. 6520LIONEL TRAINS SEARCHLIGHT CAR No. 6520

black horizontal bar

Lionel Trains Searchlight Car No. 6520 D Variation
spacer

Lionel Trains Searchlight Car No. 6520The Lionel Lines Searchlight Car No. 6520 was available from 1949 until 1951. Produced on a die-cast metal depressed center flat car chassis that is painted LIGHT GRAY with BLACK rubber-stamped serif lettering "6520 LIONEL LINES 6520" on the car sides. The searchlight could be remotely turned off and on with the use of a No. 6019 or UCS remote control operating track section. The car has one brake wheel that is located opposite the searchlight and there are steps at the four corners. These steps are often found broken. This car came equipped with staple-end trucks that have magnetic couplers.

Searchlight Car No. 6520 E Variation

In addition to the variations that are listed below, there were other distinctions like the color of the fiber switch unit that would allow the light to be turned off, and the finish of the searchlight housing. There are three types of searchlight housing:
spacer
  1. Crinkled DARK GRAY finish. This is the most common.
  2. Smooth glossy GRAY finish. Relatively Scarce.
  3. Smooth glossy BLACK finish. This is a rare variation.

Crinkle Finished Seachlight

The variations listed below have to do with the color of the generator. Note: These generators, and to lesser extent the searchlight themselves are easily changed.
spacer
There are six variations:
spacer
Variation A: GRAY generator (production prototype).
spacer
Variation B: TAN generator (production prototype).
spacer
Variation C: GREEN generator with smooth glossy BLACK searchlight housing.

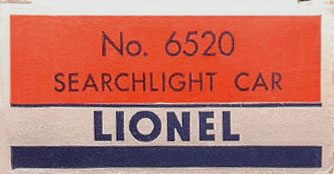

No. 6520 Box End

Variation D: GREEN generator with either style of GRAY searchlight housing.
spacer

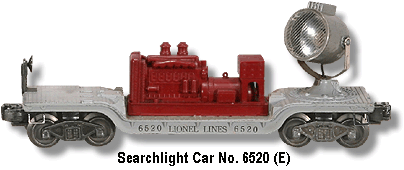

Variation E: MAROON generator with either style of GRAY searchlight housing.
spacer

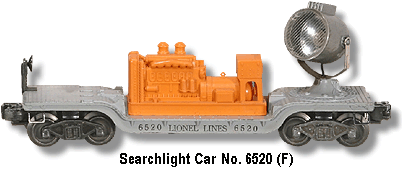

Variation F: ORANGE generator with either style of GRAY searchlight housing.

Searchlight Car No. 6520 F Variation

The No. 6530-23 instruction sheet is printed with BLACK ink on WHITE paper and is dated 5-50. This indicates that despite being in the 1949 catalog, this car was not issued until 1950. If you have any information concerning the release date of this operating car we would like to hear from you. Please use the "Contact" link at the bottom of this page. We’ve shown pictures of front and back pages of this instruction sheet below.
spacer

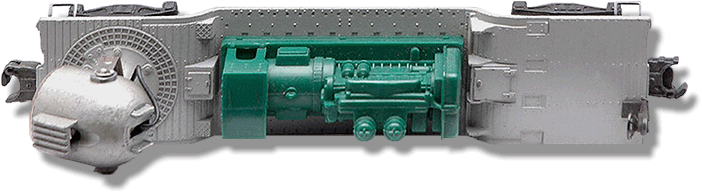

No. 6520 D Variation Top View
No. 6520-23 Instruction Sheet Front Page
spacer
No. 6520-23 Instruction Sheet Back Page
spacer
