This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

Lionel Trains Auto Loader Flat Car No. 6414LIONEL TRAINS AUTO LOADER CAR No. 6414

black horizontal bar

Auto Loader Car No. 6414 - Autos have Chrome bumpers Auto Loader Car No. 6414 - Autos have Gray bumpers

Lionel Trains Auto Loader Flat Car No. 6414Auto Loader Car No. 6414 was produced for 11 years (1956-66) during the post war era. Because of this, there are ten different variations. Many of these variations have to do with the quality and color of the autos that came with this flat car. In 1958, when the trucks changed from bar-end to AAR, the number moved to the left of the "LIONEL" inscription. We’ve shown the early issue of this car above left, and a later issue with four RED autos that have GRAY bumpers to the right. The last variation, pictured below, has a BLACK decal with YELLOW letters "6414 AUTO LOADER / EVANS," and this variation is rare.

No. 6414 Late Classic Box End

Variation Details:
spacer
Variation A: RED colored car produced on mold 6511-2 with bar-end trucks attached to blackened metal end plates. Number is to the right of the heat-stamped "LIONEL" lettering on the car side. Came with four premium (Chrome Bumpers and clear Window inserts) autos that are almost always colored RED, YELLOW, WHITE, and TURQUOISE. These cars where housed in a cardboard sleeve (2/sleeve) when new. Produced between 1955 and 1957.
spacer
Variation B: Same as Variation A except the number has moved to the left side of the "LIONEL" inscription on the car side. Came with AAR trucks that have disc couplers. These trucks are riveted directly to the car chassis. Same colored cars, but it is also found with two RED and two YELLOW cars. The cardboard sleeve that housed these cars has been removed from the original packaging. Produced between 1958 and 1963 and housed in an ORANGE picture box numbered "6414" between 1961 and 1964.
spacer
Variation C: Same as Variation B except uses mold 6424-11.
spacer
Variation D: Same as Variation B or C except one disc and one solid non-operating coupler. Came with four reduced quality cars (no bumpers and no clear Window inserts) and is found in a rare ORANGE picture box numbered 6414-85. Produced in 1961.
spacer

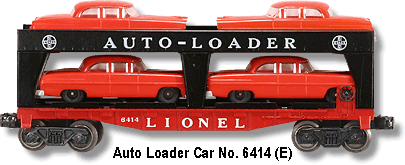

Variation E: Same as Variation B except car is a lighter RED color. Came with four RED autos with GRAY bumpers that match the color of the car. Released in an ORANGE picture box numbered 6414 between 1964 and 1966.
spacer
Variation F: Same as Variation E except came with four YELLOW autos with GRAY bumpers.

No. 6414 Orange Picture Box End
spacer
No. 6414-85 Box End
spacer
No. 6414 Display Box End

Variation G: Same as Variation E except came with four MUSTARD YELLOW cars with GRAY bumpers.
spacer
Variation H: Same as Variation E but came with four CHOCOLATE BROWN autos with GRAY bumpers.
spacer
Variation I: Identical to Variation E except came with four KELLY GREEN autos with GRAY bumpers.

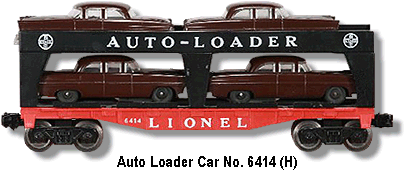

No. 6414 Variation H - Autos have Gray bumpers

Variation J: Produced in the last year of the post war period for Glen Uhl, a Lionel Service Station owner in Akron Ohio. Production of this car did not exceed 200 units. The car is not numbered and it has late open journal AAR trucks that have one disc coupler and one solid non-operating coupler. The common rubber-stamped lettering on the auto rack has been replaced with a BLACK background and YELLOW san-serif "6414 AUTO LOADER" lettered decal. There is no anti-skid detail on either the upper or lower auto rack.
spacer

No. 6414 Variation I - Autos have Gray bumpers

The decals have been reproduced, but forgeries are difficult to construct due to the additional changes to this car. Came with four RED autos that match the color of the flat car. These cars came with GRAY bumpers.
spacer

ecaled Auto Loader Car No. 6414 - Autos have Gray Bumpers

Lionel Automobiles
spacer
When first released in 1955 to fit the Auto-Loader car, these automobiles were based, according to Lionel, on "Precision scale molded Ford autos." While not exactly "scale," they do bare a resemblance to the 1955 Ford 2-door sedan.
spacer
Other manufacturers of toy autos at the time were casting one piece plastic toys.

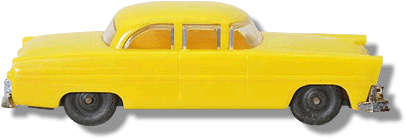

Typical Lionel Auto with Chrome Bumpers

However, Lionel made their autos from five molded plastic pieces, two metal axles, and four rubber tires. The main mold that was used for the car has six legs (visible in the cheap auto pictured below) four of which were designed to hold the axles in place.
spacer
From almost the beginning of the Modern Era in 1970 reproduction automobiles have been available. Fortunately, the manufacturers of these reproductions failed to account for the shrinkage in the injection molding process and they are 1/16" inch shorter. The measurements shown below to the right are taken from the tip of the cowling over the headlights to the end of the body mold (not counting the tail lights).

Note the Different Enscription
Bottom View of LTI Car

Modern Era productions by LTI show a different inscription on the bottom. The original post war cars are inscribed on the rear of the car "THE LIONEL CORPORATION / NEW YORK NEW YORK" and on the front "MADE IN / U.S. OF AMERICA." As shown, reproductions do not have these inscriptions on the bottom of the chassis.
spacer
From 1955 until 1957 Lionel would package these automobiles in a cardboard sleeve that have holes cut out for the wheels of the cars. Two autos were house in each sleeve. This same packaging was used on the No. 6424 Auto Flat Car. Lionel sold four autos (2/sleeve) separately during these years under the No. 6414-25. The middle classic box end for these is shown below. Only the premium autos were housed in this fashion. Separate Sale Box End of Four Automobiles

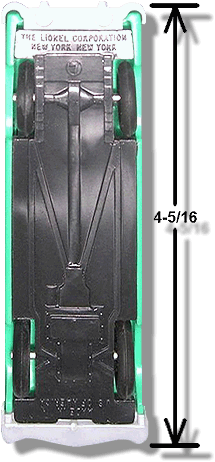

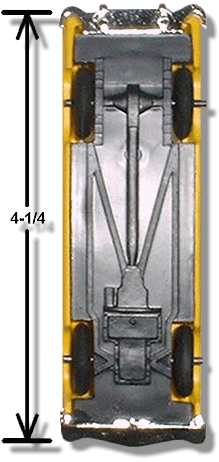

Bottom View of an Original Post War Auto Bottom View of a Reproduction Auto

Premium Automobiles and Gray Bumpers
spacer
To reduce the cost of production Lionel stopped plating the bumpers to simulate a chrome finish sometime around 1960. They replaced them with GRAY bumpers. Today, collectors only consider the early cars with chrome bumpers and a clear window insert to be "premium." The assembly of the bumpers trapped them between the body and the chassis. Should the bumpers be broken it is necessary to dis-assemble the body from the chassis, which is problematic because the body is glued to the chassis.

Front View of Premium Auto with Chrome Bumper

Automobile Colors
spacer
Only four colors were manufactured of the premium automobiles, RED, GREEN (TURQUOISE), YELLOW, and WHITE. There are variations in the shades of the colors that are used and the types of bumpers that are found on them and we’ve summarized these below.
spacer
RED
spacer1. A DARKER RED was used on the premium cars.
spacer2. A BRIGHTER RED was used on the cars with GRAY bumpers.
spacer
GREEN
spacer1. Actually a BLUISH GREEN color was used for the premium cars. Collectors sometimes refer to this color as TURQUOISE.
spacer2. Those cars that have GRAY bumpers are found with a KELLY GREEN color. This is a scarce variation.

YELLOW
1. A MEDIUM YELLOW color is found on premium cars.
2. Cars with GRAY bumpers have a BRIGHTER YELLOW shade.
3. GRAY and CHROME bumpered cars are also found in a less common darker shade of MUSTARD YELLOW.
WHITE
1. This color was only produced for premium cars.
2.

In 1959, Lionel produced this car with WHITE plastic that is particularly prone to color change. Sometimes referred to as a TAN, or CARAMEL, this change resulted from exposure to the elements and the original color of WHITE can be seen on the concealed inner surfaces.
spacer
This is the problem that is found on the No. 57 AEC Switcher, the No. 6014-150 Wix Box Car and the No. 3366 Operating Circus Car.

CHOCOLATE BROWN
1. This color is only found on cars that have GRAY bumpers. A rare color.

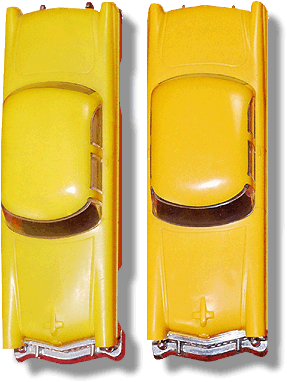

Yellow Colored Car to the Left, Mustard Colored on Right

PASTEL BLUE
spacer1. Sometimes referred to as ROBIN’S EGG BLUE, this color is found on some premium cars and is a very rare color.
spacer
MAHOGANY
spacer1. Is only found on cars that have GRAY bumpers and is more REDDISH BROWN than the
spacer   CHOCOLATE BROWN cars. This color is similar to what was used on the No. 1877 Horse Transport Flat Car.
spacer

Cheap Automobiles
spacer
In 1961, as a cost reduction regimen at Lionel, they would produce these cars as one piece castings. These cars have become known as the "cheapie automobiles." Taken from the mold of the oversized No. 0068 HO Scale Executive Inspection Car they seem to have only been available this one year.

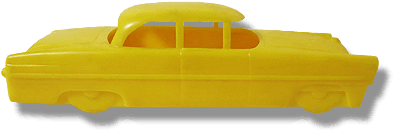

Side View of Cheap Automobile

Because these original one-piece castings looked "weird," Lionel would fill in the wheel wells with simulated tires. These were only produced in the RED and YELLOW colors. There are twelve variation to the molds that were used, some originating from the above mentioned executive car and others came from modifications done to Lionel’s race set cars. Originally these cars came on a DARKER RED 6414 Flat Car Chassis with the number to the left of the "LIONEL" inscription on the car sides and is equipped with AAR trucks that is occasionally found with one disc coupler and one solid non-operating coupler. See Variation D above.
spacer

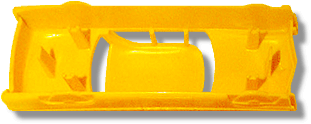

Bottom View of a Cheap Auto
