Lionel Electric Trains Identification Guide Sub-Title
These pages are best viewed at 1024 x 768 x 32 bit monitor resolution
Bottom of Page

This Identification Guide for Lionel Electric Trains covers the "Post-war Era" only from 1945 until 1969.

black horizontal bar

The Lionel Trains Gondola CarsLIONEL TRAINS GONDOLA CARS

black horizontal bar

Lionel Trains New York Central Red Type 1c Gondola Car

Lionel knew the value of this car from the pre-war years. Although, all of the post war cars would be made from plastic, they carried the tradition of hauling many types of loads into to the post war period. It was a rare train set that did not have at least one of these cars.

The first car issued was a nicely detailed eight inch car labeled for the Pennsylvania railroad in 1945. In 1948, this car was joined by another eight inch car that was labeled "LIONEL" and was always found in Lionel’s Scout and later their more economical sets. The third, and larger, 9-9/16 inch car was almost always imprinted with New York Central markings. There were other specialized cars that were issued and these are listed in the Operating Cars section.
spacer
Below we’ve listed these cars by their series type:

spacer
BB 2452 SERIES 8 INCH PENNSYLVANIA GONDOLA CARS BB 6000 SERIES 8 INCH LIONEL GONDOLA CARS
BB 6462 SERIES 9-9/16 INCH GONDOLA CARS

At the bottom of this page are indexed those gondola cars that we’ve researched listed in Numerical order. If the car has no number refer to our No Number listing below.
spacer
Readers who need more information are respectfully urged to seek outside sources.


black horizontal bar

Lionel Trains Small Gondola CarsTHE 2452 SERIES EIGHT INCH GONDOLA CARS

black horizontal bar

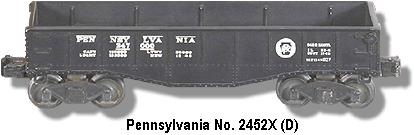

Lionel Trains 2452 Series Gondola Cars

Lionel Trains Small Gondola CarsThese 8 inch Gondola Cars were first available in 1945. They consisted of a BLACK plastic body held to a sheet metal under frame by four corner screws that are visible from the top. This under frame had four steps located at each corner. Initial production used Type 1a or 1b trucks in 1945, and Type 2 or Type 3a trucks were used in 1946.
spacer

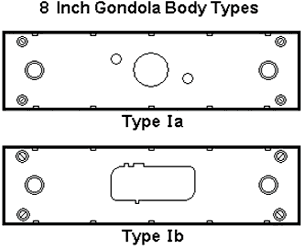

These first productions used the Type 1a body mold with a circular opening in the middle. To accommodate the electronic control for the No. 4452 this opening was modified in 1947 (Type 1b).

2452 Body Types
spacer
Return To Previous Page

The Type 1b body mold was used on 1947 and later productions that had Type 3b trucks. Note that the early productions used flat fillister head body screws, while the 1947 and subsequent productions would use smaller round head screws to attach the body to the under frame.
spacer
This car was not available after 1949.
spacer
See the Numerical Index for additional details about the individual gondola cars in this series.


black horizontal bar

Lionel Trains Small Gondola CarsTHE 6000 SERIES EIGHT INCH GONDOLA CARS

black horizontal bar

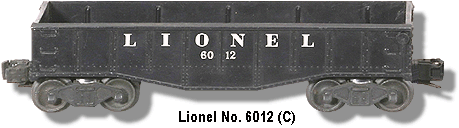

Lionel Trains No. 6012 Variation C

Lionel Trains Small Gondola CarsThese 8 inch Gondola Cars were first produced for Lionel’s Scout Sets in 1948, and unlike their predecessors the 2452 Series they did not have a metal undercarriage. Equipped initially with scout trucks they would later be fitted with regular trucks with magnetic and later disc couplers. These cars are always imprinted with the "LIONEL" name and were made entirely from plastic.

This car was produced until the end of the post-war period in 1969.
spacer
See the Numerical Index for additional details about the individual gondola cars in this series.

black horizontal bar
The Lionel Large Gondoala CarsTHE LIONEL 6462 SERIES 9-9/16 INCH GONDOLA CARS

black horizontal bar

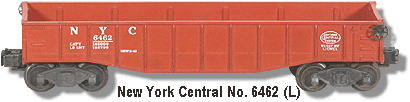

The Lionel Trains Gondola No.6462 Variation L
spacer
The Lionel Large Gondoala CarsThese Large Lionel Gondola Cars measure 9-9/16 inches long and they joined the Lionel line in 1949. These cars almost always appeared with the markings for the "NEW YORK CENTRAL" railroad and sometimes they came with six barrels that, until 1954, were the type that have the top and bottom rims. After this date, these barrels were of the smaller type that were sometimes stained, and these barrels were developed for use with the No. 3562 Barrel Car.
spacer
First issues of these cars have brake wheels and side steps at the four corners that were part of the sheet metal under frame. These steps were eliminated by 1950. Lionel was not consistent in their use of brake wheels, which are sometimes found throughout the various issues until 1954, when they were eliminated.
spacer
In 1954 Lionel would change the way the heat-stamped lettering was applied. Prior to this date the "N" in "NYC" was located in the second panel and after 1954 this letter appeared in the third panel. It is important to note that the earlier issues have the number "Under-Scored," whereas later issues would have the "NYC" "Over-Scored" and only sometimes was the number still "Under-Scored."
spacer
Running concurrently with these changes was that of the weight data that was printed on the sides of the cars. From 1949 until 1951 there was three lines of data, and from 1950 until 1954 there would be only two lines of data. After 1954 Lionel would revert back to three lines of car weight data. First issues of these cars had Staple-End trucks. These were replaced by Bar-end trucks in late 1951.
spacer
All in all, this issue of these gondola cars makes one of the most interesting examples of variations for the collector. See the Numerical Index for additional details about the individual gondola cars in this series.

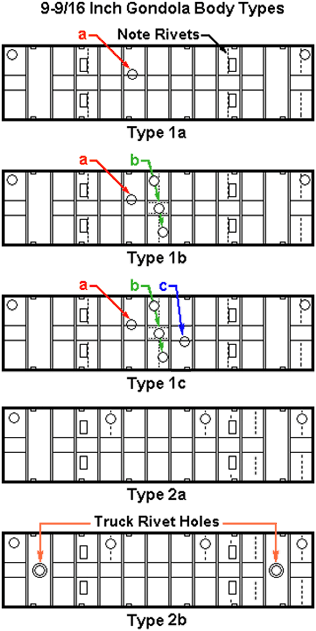

6462 Series Body Types
spacer Return To Previous Page Top of Page
Bottom of Page

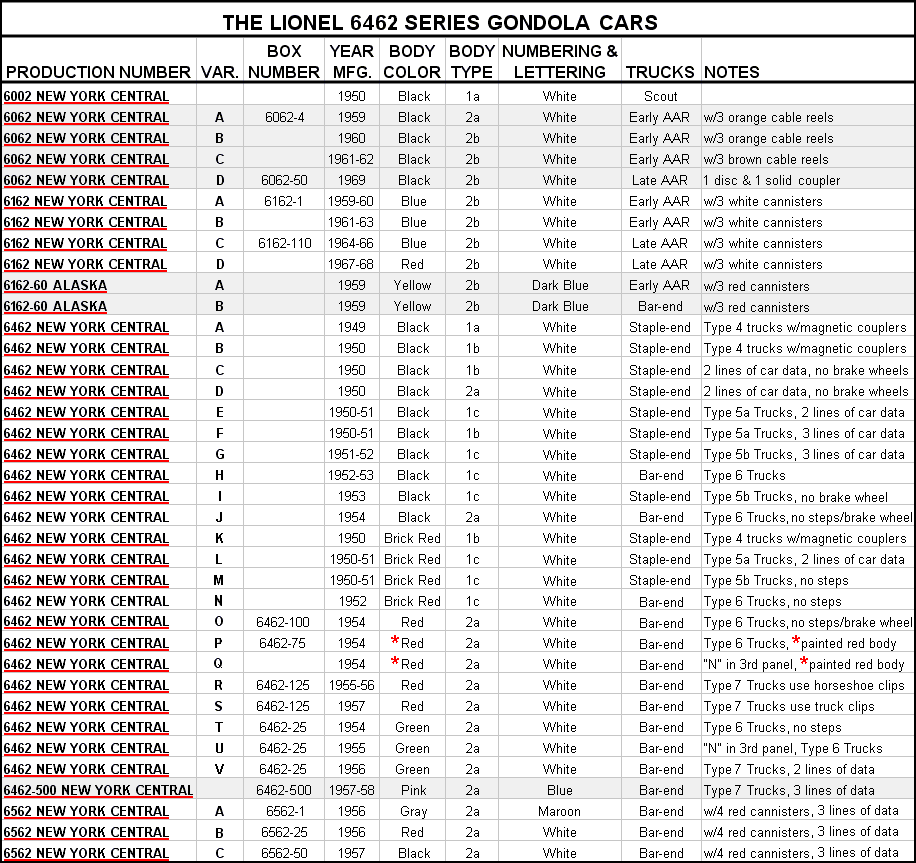

Production Table for the 6462 Lionel Gondola Types

spacer Return To Previous Page Top of Page
Bottom of Page

black horizontal bar

Numerical List Title
BB 1002 Lionel
spacer
BB 2452 (347000) Pennsylvania
spacer
BB 2452X (347000) Pennsylvania
spacer
BB 4452 (347000) Pennsylvania
spacer
BB 6002 New York Central
spacer
BB 6012 Lionel
spacer
BB 6032 Lionel
spacer
BB 6042 Lionel BLACK (A)
spacer
BB 6042-75 Lionel BLUE (B)
spacer
BB 6062 New York Central
spacer
BB 6112 Lionel
spacer
BB 6142 Lionel
spacer
BB 6162 New York Central
spacer
BB 6162-60 Alaska Railroad
spacer
BB 6452 (347000) Pennsylvania
spacer
BB 6462 New York Central BLACK (A)
spacer
BB 6462 New York Central BLACK (B)
BB 6462 New York Central BLACK (C)
spacer
BB 6462 New York Central BLACK (D)
spacer
BB 6462 New York Central BLACK (E)
spacer
BB 6462 New York Central BLACK (F)
spacer
BB 6462 New York Central BLACK (G)
spacer
BB 6462 New York Central BLACK (H)
spacer
BB 6462 New York Central BLACK (I)
spacer
BB 6462 New York Central BRICK RED (K)
spacer
BB 6462 New York Central BRICK RED (L)
spacer
BB 6462 New York Central BRICK RED (M)
spacer
BB 6462 New York Central RED (Q)
spacer
BB 6462-25 (6462) New York Central GREEN
spacer
BB 6462-125 (6462) New York Central RED
spacer
BB 6462-500 (6462) New York Central PINK (Girl’s Set)
spacer
BB 6562-1 (6562) New York Central GRAY (A)
spacer
BB 6562-25 (6562) New York Central RED (B)
spacer
BB 6562-50 (6562) New York Central BLACK (C)

black horizontal bar

No Number List Title
We’ve listed these unnumbered cars by their color, type:

BB LIGHT BLUE 6000 Series Plastic w/detailed underside 6042-250
spacer
BB GREEN 6000 Series Plastic w/detailed underside 6142-50 Variation B
spacer
BB BRIGHT TRANSLUCENT GREEN 6000 Series Plastic w/detailed underside 6142-50 Variation C
spacer
BB OLIVE DRAB 6000 Series Plastic w/detailed underside 6142-175 Variation H
